OX504 50HP Tractor Australia

The OXPLO OX504 is a 50HP 4WD tractor designed for Australian farms, acreage properties and general agricultural work. It features a 36.8 kW diesel engine, 8F+8R transmission, full hydraulic steering, 540/1000 rpm PTO and Category I three-point linkage for operating a range of compatible implements.
OX504 50HP Tractor Australia
Yunnei YN27D, 2.7 L

Engine

50HP

Power

820kg

Load

3010×1620×2610mm

Dimensions

The OXPLO OX504 is a 50HP 4WD tractor designed for Australian farms, acreage properties and general agricultural work. It features a 36.8 kW diesel engine, 8F+8R transmission, full hydraulic steering, 540/1000 rpm PTO and Category I three-point linkage for operating a range of compatible implements.

PARAMETERS

TypeOX504
Rated power36.8 kW / 50 HP
Drive Type4WD
Overall dimensionsOverall size with cab L×W×H  (mm)3010×1620×2610
Wheel trackFront wheel track (mm)1000 / 1100 / 1200 / 1300 /  1400/1500
Rear wheel track (mm)960–1500
Wheelbase (mm)1900
Ground clearance (mm)275
Min. operating mass (kg)2150
EngineTypeVertical, water-cooled, 4-stroke
ModelYunnei  YN27D
Max. Torque (N·m)178/1400-1800
Rated speed (rpm)2400
TyreFront tyre

260/70R16

Rear tyre320/85R24
Clutch9" double-action
SteeringFull Hydraulic
PTO540/1000 (opt. 540/720)
Gears

8F + 8R

3-point linkage category

Cat I


Source: OXPLO official specifications.

DETAILS

What Is the OXPLO 50HP Tractor?


The OXPLO 50hp tractor is a 4WD agricultural tractor designed for farms, acreage properties, orchards and general field operations. It combines a diesel engine, 8F+8R transmission, hydraulic steering and PTO capability for operating compatible agricultural implements.


How Does the OXPLO 50HP Tractor Work?


Watch the video walkthrough to see the OXPLO 50hp tractor in operation and explore its key features, controls and agricultural applications.

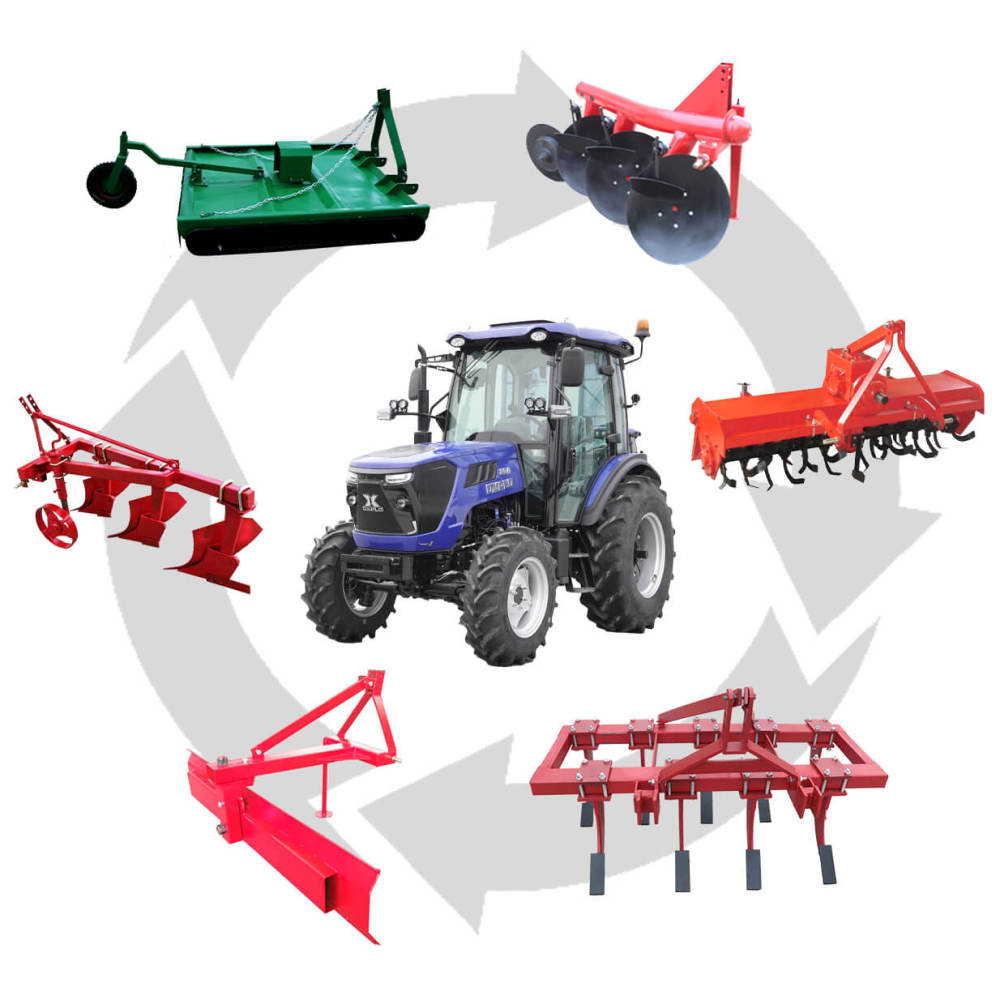

What Can a 50HP Tractor Be Used For?


A 50hp tractor can handle a range of general farm, acreage and property maintenance tasks when matched with the appropriate implements.

Acreage & Property Maintenance

Suitable for mowing grass, managing weeds and maintaining open areas with compatible rotary slashers and other three-point implements.

Livestock & Feed Handling

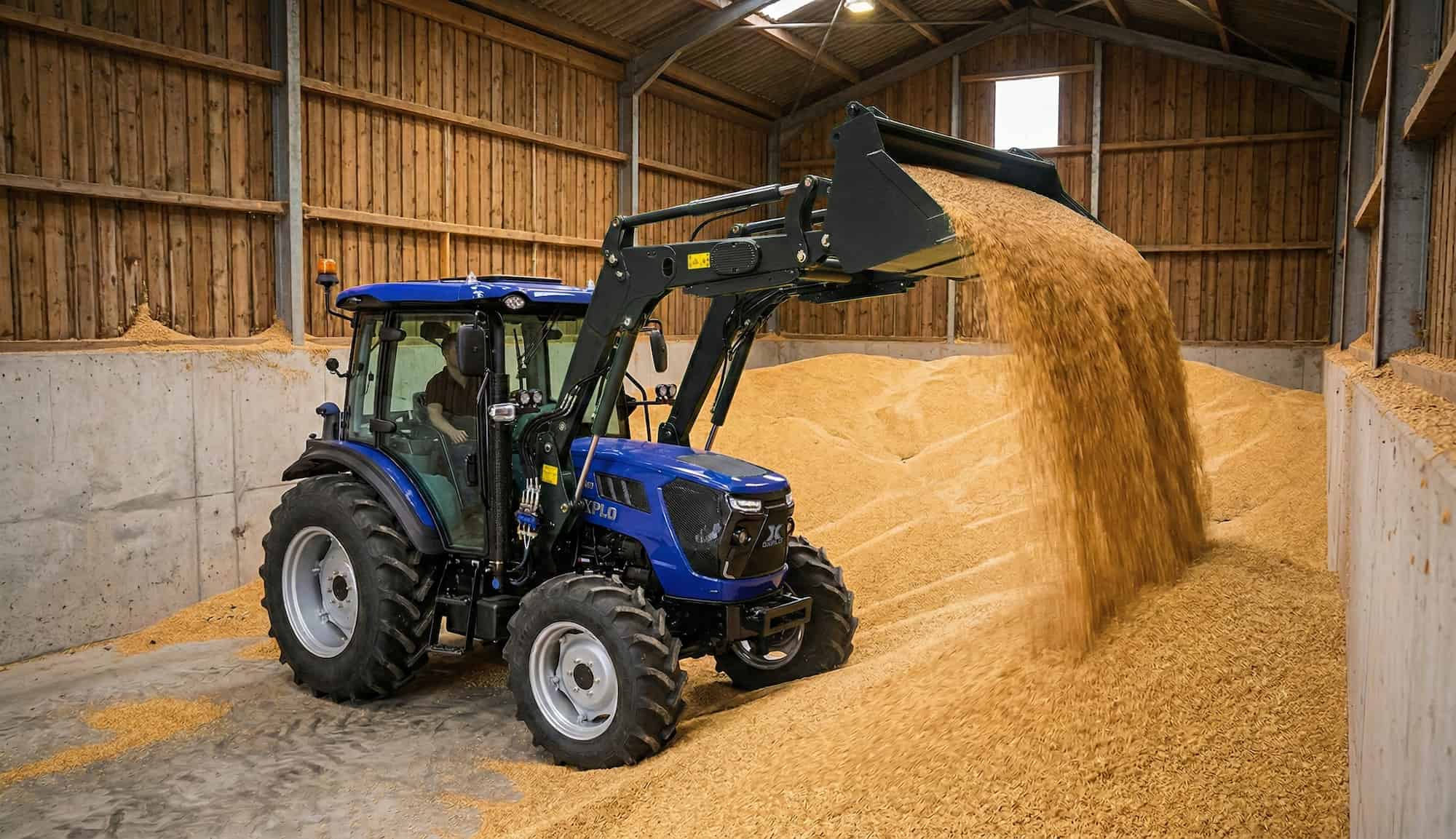

When equipped with a compatible front-end loader, the 50hp tractor can support routine material handling tasks such as moving feed, handling suitable loads and maintaining paddock areas.

Soil Cultivation & Crop Maintenance

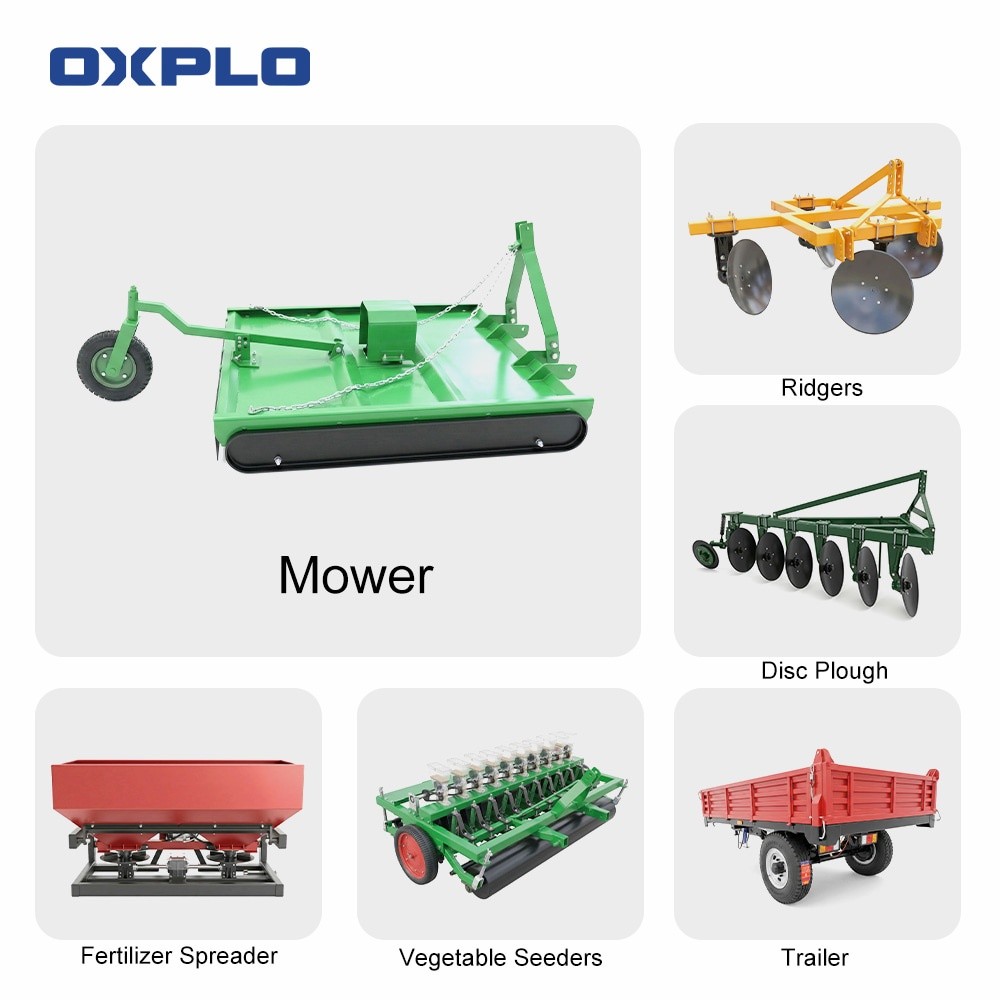

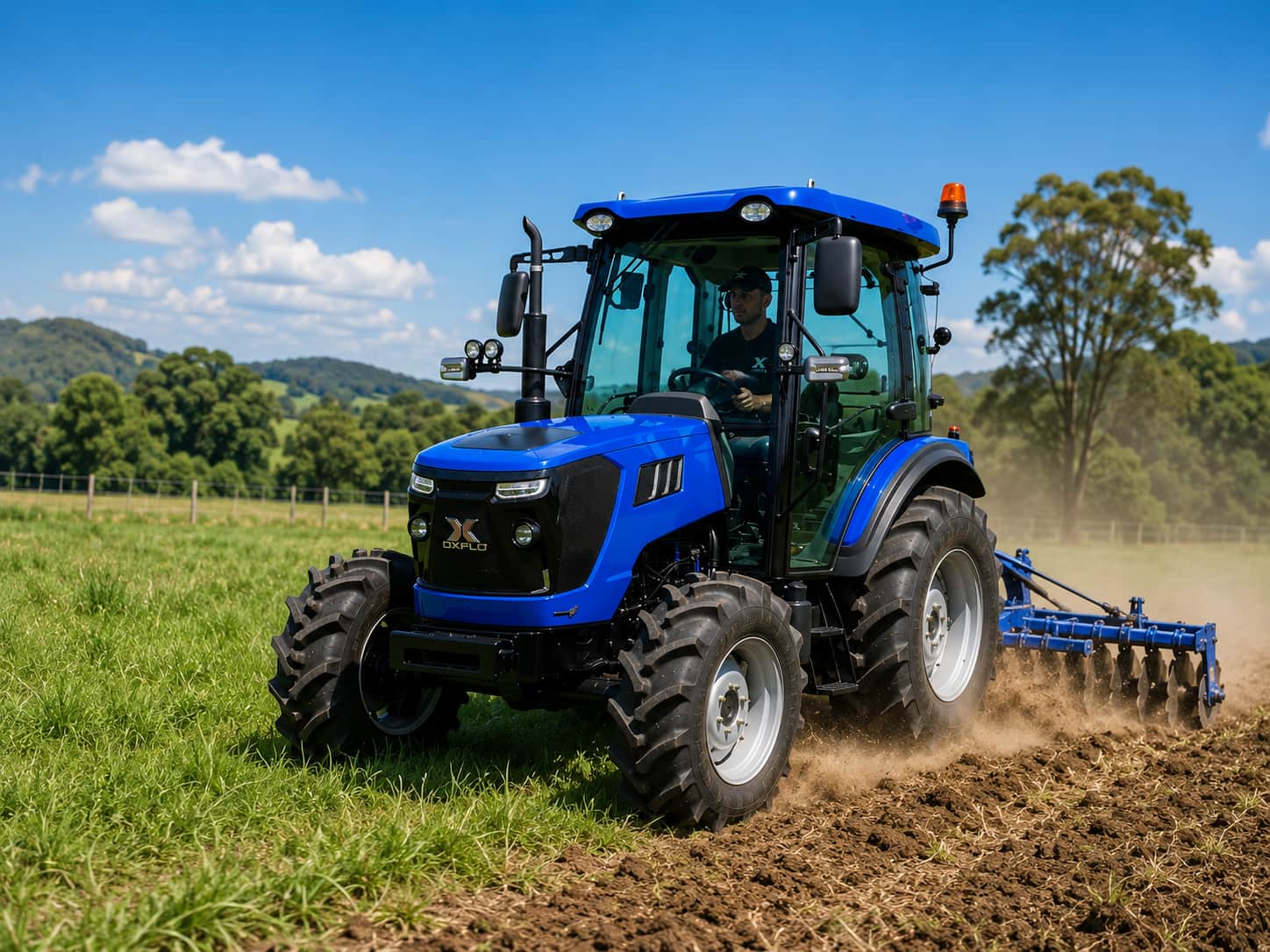

The Category I three-point linkage and PTO allow the 50hp tractors to operate compatible rotary tillers, disc harrows, rippers and other implements for soil preparation and routine crop maintenance.

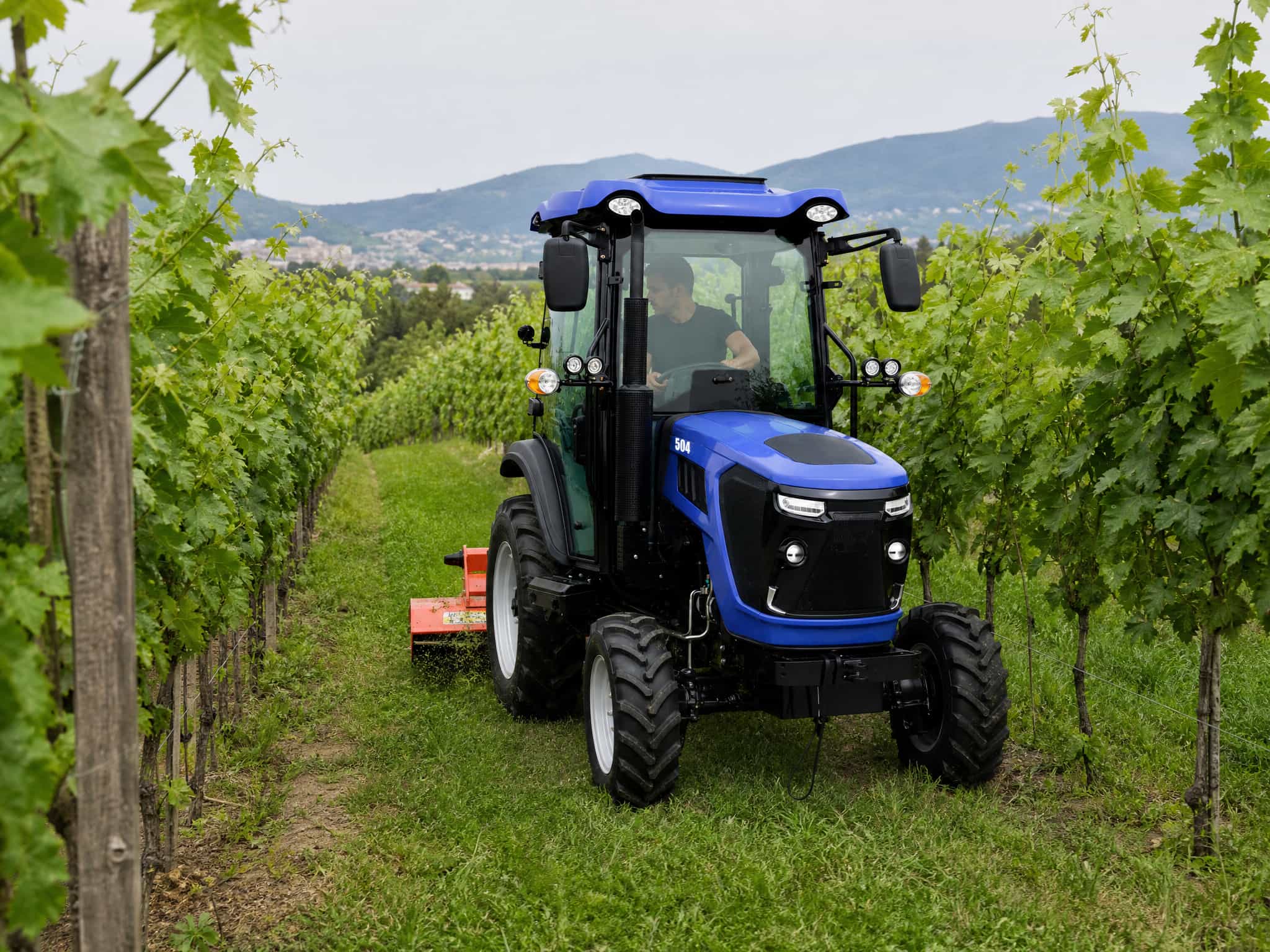

1784621356938103721380814848.jpg@!w400

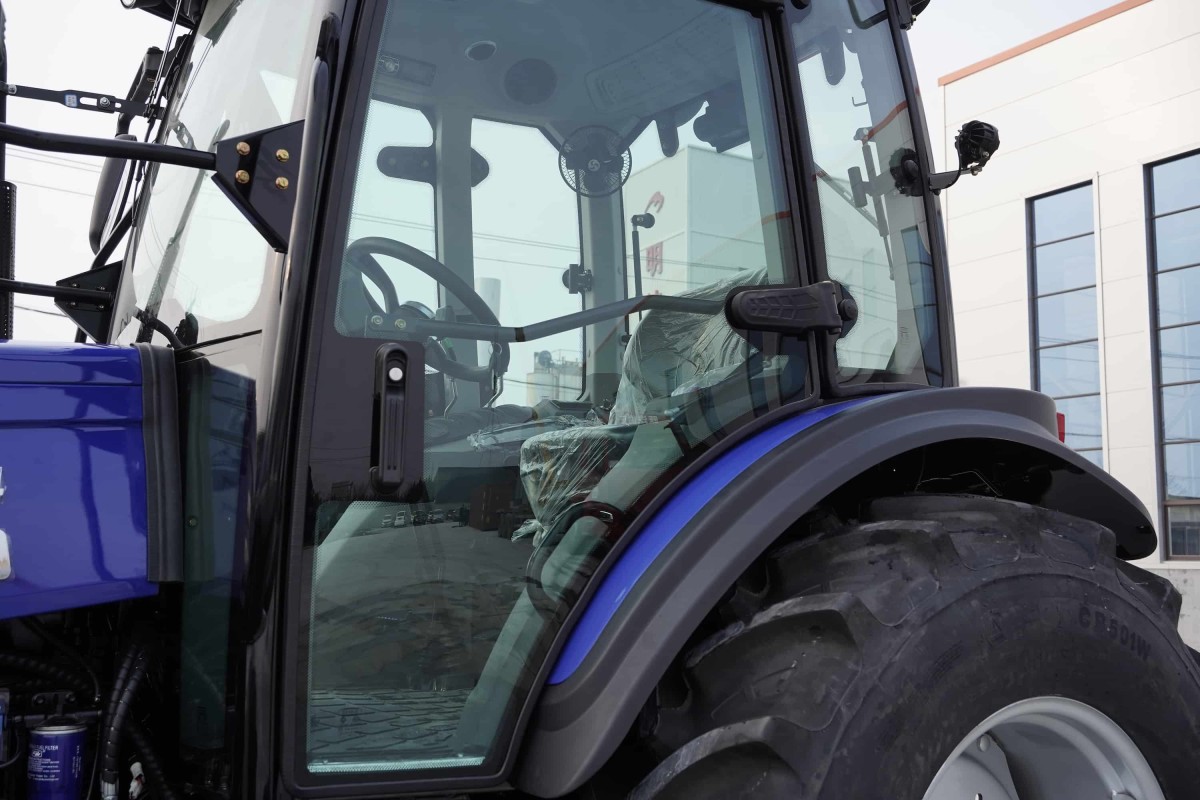

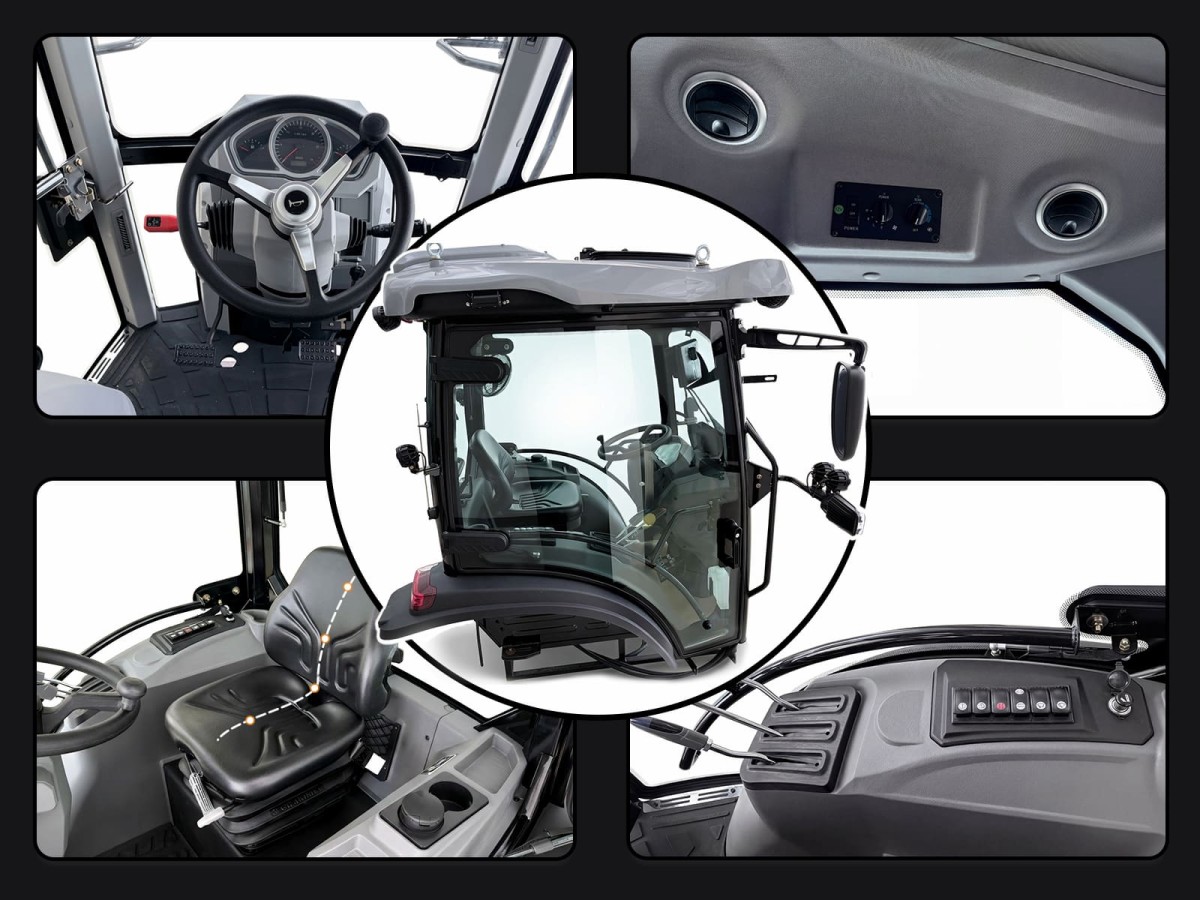

What Operator Features Does the OXPLO 50HP Tractor Offer?


Built for the rugged Australian landscape, the OXPLO 50HP tractor cabin puts the operator first. We combine extreme durability with all-day comfort, creating a dust-free, climate-controlled sanctuary that keeps you productive through your longest shifts.

360° Panoramic Visibility

See more, operate safer.Our pillars-free design and high-clarity glass offer a true 360-degree view. Minimize blind spots and gain complete control over your surroundings, allowing for faster, more accurate field operations.

Dust-Free & Quiet Environment

A sanctuary in the field.Our advanced positive-pressure filtration system keeps dust, allergens, and pollutants out, while industry-leading sound insulation creates a quiet workspace, protecting your health and concentration.

All-Season Climate Command

Your comfort, any weather.From scorching summer heat to crisp winter mornings, our high-performance heating and cooling system maintains a consistent, comfortable temperature throughout the entire cab.

Ergonomic Shock Absorption

Finish the day as fresh as you started.Equipped with premium suspension seating and vibration-dampening technology, our cabin absorbs terrain shocks, significantly reducing operator fatigue and protecting your physical well-being during long shifts.

Night-Shift LED Array

Productivity, redefined.Equipped with a comprehensive multi-angle LED lighting matrix, our cabin ensures maximum visibility. Extend your operating hours with precision lighting that turns night into day.

OXPLO Proprietary Structural Engineering

Safety meets spaciousness.Built on our signature structural platform, the cabin offers superior cabin strength and protection without sacrificing internal space. Experience a wider, more intuitive layout designed for real-world heavy-duty usage.

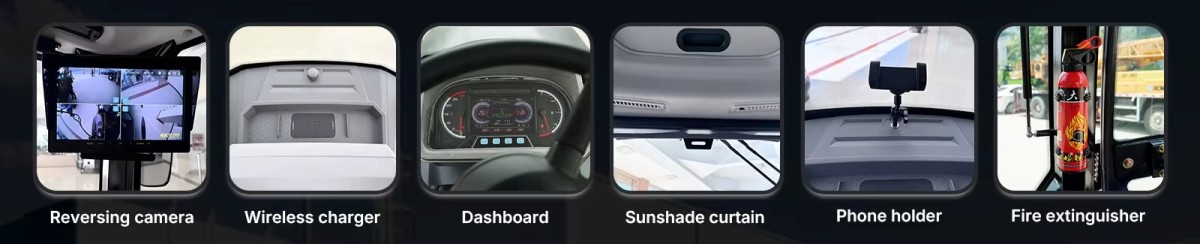

What Cabin Configurations Are Available for the OXPLO 50HP Tractor?


OX504 50HP Tractor Australia

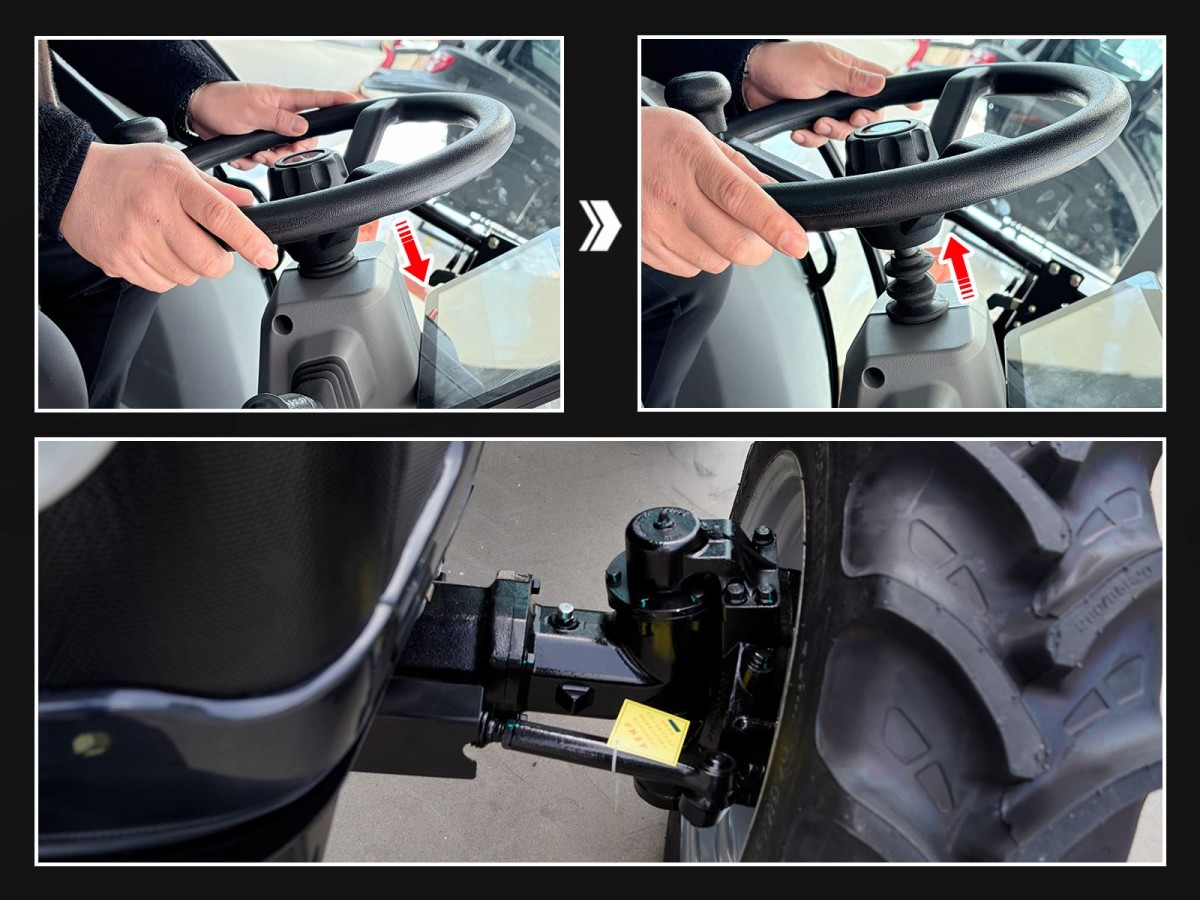

How Does the OXPLO 50HP Tractor Steering System Work?


At OXPLO, we believe that power is nothing without control. Our steering system is designed to turn heavy-duty work into an effortless experience. Whether you're navigating tight headlands or managing long, straight rows, our steering architecture ensures responsiveness, comfort, and reliability in every maneuver.

Effortless Hydraulic Handling

Experience the lightness of precision. Our full hydraulic power steering system eliminates heavy resistance, ensuring that your OXPLO tractor remains agile and easy to handle, even during long, demanding shifts in the field.

Easy Maneuvering in Tight Spaces.

The full hydraulic steering system provides responsive steering control, helping the OXPLO 50HP tractor maneuver smoothly around field headlands, narrow areas and other working spaces.

Customized Comfort for Every Operator

We know that not every driver is built the same. The steering column is fully adjustable in both height and angle, allowing you to find your perfect, fatigue-free driving position, regardless of your stature.

Built for the Long Haul

The Australian landscape can be harsh. That's why our steering components are protected by multi-sealed, corrosion-resistant materials. We've built this system to withstand dust, grit, and variable conditions, ensuring rock-solid reliability year after year.


OX504 50HP Tractor Australia


What Problems Can the OXPLO 50HP Tractor Help Solve?


In real-world operations, a 50hp tractor is more than just a power source — it is the center of your operating costs. OXPLO was engineered specifically to solve the most common challenges farmers face in daily use:

Say Goodbye to Weak Chassis Structures

Conventional tractor chassis are prone to cracking under heavy loads, and gear slippage is a frequent issue over time. OXPLO addresses this with a high-strength cast iron chassis manufactured through precision CNC machining, delivering exceptional structural stability and dependable performance during demanding operations.

Solving the Implement Hitching Challenge

Attaching implements alone can be difficult, time-consuming, and inefficient. Our rear adjustment and quick-hitch system simplifies the process, transforming implement changes from a labor-intensive task into a smooth, controlled operation that improves productivity in the field.


OX504 50HP Tractor Australia


Eliminating Breakage Concerns

Under high-intensity workloads, traditional three-point hitch link rods often face fatigue and fracture risks. OXPLO uses an integrated forging process to significantly enhance impact resistance and structural integrity, ensuring long-term reliability even in tough conditions.

Removing Compatibility Barriers

Equipped as standard with dual 6-spline and 8-spline PTO outputs, OXPLO tractors are designed to match mainstream implements worldwide. No more concerns about interface mismatches — just seamless integration and consistent performance.


OX504 50HP Tractor Australia


What Components and Manufacturing Features Does the OXPLO 50HP Tractor Have?


Trust is built on details you can see — and performance you can depend on. At OXPLO, quality is engineered from the inside out.

Backed by a Global Tier-One Supply Chain

Key internal components are sourced from industry-leading manufacturers, including bearings from C&U and PEER, as well as transmission gears from Wanliyang. Premium components from proven brands ensure extended service life and long-term, trouble-free operation.

World-Class Surface Protection

All models feature high-end coating systems supplied by Jotun. This advanced paint process delivers excellent corrosion resistance along with superior protection against abrasion and flying debris, allowing the tractor to maintain its appearance and structural integrity even after years of operation in harsh environments.

Precision Manufacturing at the Core

Our axle housings and chassis components are not produced through rough casting alone. They are fully machined using high-precision CNC equipment. This process guarantees optimal gear meshing accuracy within the drivetrain, effectively reducing power loss while lowering long-term maintenance requirements.


OX504 50HP Tractor Australia


What Are the Benefits of Choosing the OXPLO 50HP Tractor?


When you choose OXPLO, you gain more than a 50hp tractor — you secure long-term operational value for your business.

Stronger Resale Value

Thanks to the protective coating system from Jotun and the durability of our precision-machined chassis, OXPLO tractors maintain both appearance and mechanical integrity over time. This translates into higher retained value in the secondary market, helping you protect your investment.

Improved Daily Productivity

The quick-hitch system combined with stable, consistent power delivery can help recover approximately 15% of effective working time each day. In agriculture, where timing is critical and seasons wait for no one, that efficiency can make a measurable difference.

Lower Long-Term Operating Costs

Integrated forged hitch rods and a precision-engineered chassis significantly reduce the likelihood of unexpected downtime. With lower component wear and fewer repair interruptions, more of your investment is converted directly into productive output.

Global After-Sales Support

As an internationally focused brand, OXPLO provides a responsive spare parts supply system and professional service support, ensuring your machine remains ready for work whenever you need it.

OX504 50HP Tractor Australia
