TRACTOR

TE504

Oxplo, a premier Australian construction machinery brand, offers a high-performance 50hp tractor engineered for maximum efficiency in small-scale farming and versatile agricultural tasks.
TE504
4X4 18.4KW

Engine

50HP

Power

/

Load

3453×1440×2465mm

Dimensions

Oxplo, a premier Australian construction machinery brand, offers a high-performance 50hp tractor engineered for maximum efficiency in small-scale farming and versatile agricultural tasks.

PARAMETERS

TypeTE504
Power50HP
Drive Type4WD
Overall dimensionsLength/mm3580
Width/mm1510
Height/mm2600
Wheel trackFront wheel/mm1000、1100、1200、1300、1400
Rear Wheel/mm960~1400
Wheelbase/mm1800
Minimum Ground Clearance/mm315
Minimum Operating Weight/kg1700
EngineTypeYN493/ Quanchai4B5-50M22/XinChai50HP-495
/YN27GB
Model4WD
Power36.77kw
Rated speed2400
Fuel TypeDiesel
TireFront Wheel6.00-16
6.50-16
8.3-20
7.50-16
7.00-16
260/70R16
210/95R16
Rear Wheel9.5-24
12.-24/9.5-28
12.4-28
11.2-28/9.5-28
13.6-16
320/85R24
Clutch11" dual-stage
SteeringFull Hydraulic Steering
Transmission4x2×(1+1) 8+8
Hydraulic Suspension3-Point Suspension
PTO540/1000
6 × 35 ΦRectangular Spline


DETAILS

OXPLO: Beyond Power — Precision in Every Detail.


OXPLO is more than a manufacturer of agricultural machinery. We are a technology-driven company committed to bringing high-precision industrial standards into the field.

In the highly competitive 50 HP segment — widely regarded as the sweet spot for versatile farm operations — we choose not to compete on low-cost assembly or compromise. Instead, we focus on precision CNC machining and a globally sourced, top-tier supply chain to ensure uncompromising quality.

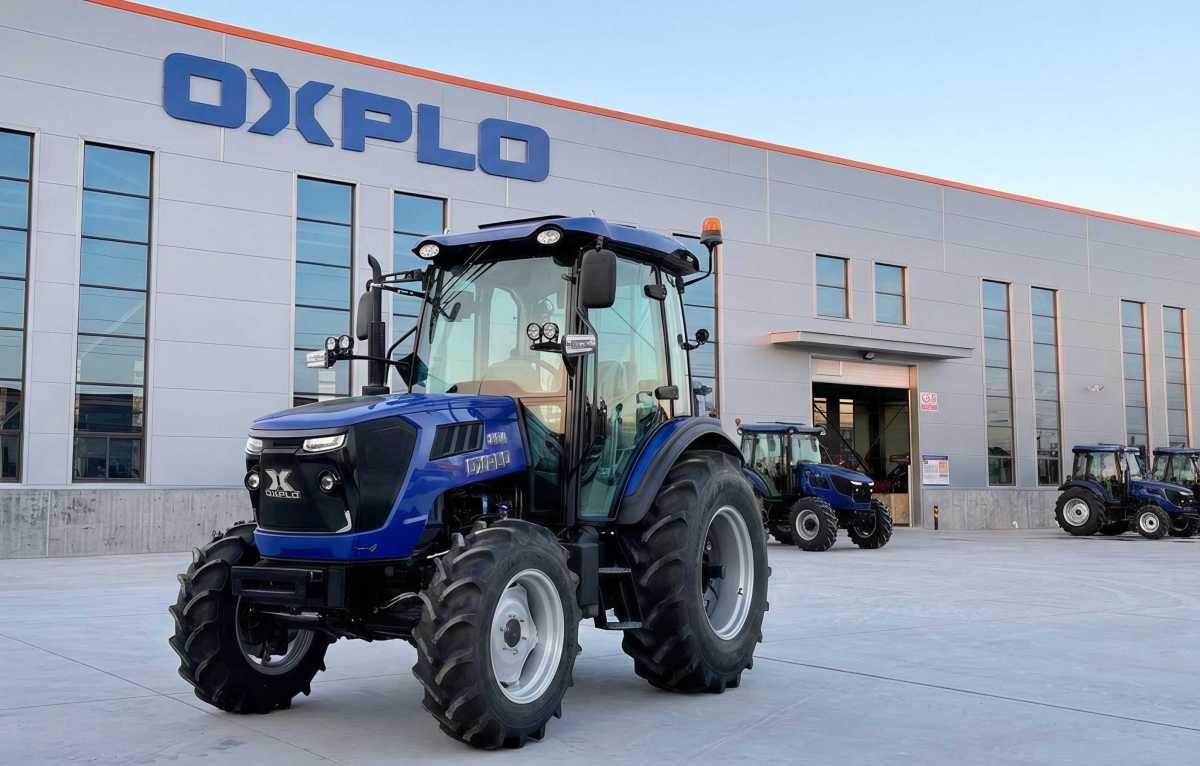

拖拉机工厂图.1


In real-world operations, a tractor is more than just a power source — it is the center of your operating costs. OXPLO was engineered specifically to solve the most common challenges farmers face in daily use:

Say Goodbye to Weak Chassis Structures
Conventional tractor chassis are prone to cracking under heavy loads, and gear slippage is a frequent issue over time. OXPLO addresses this with a high-strength cast iron chassis manufactured through precision CNC machining, delivering exceptional structural stability and dependable performance during demanding operations.

Solving the Implement Hitching Challenge
Attaching implements alone can be difficult, time-consuming, and inefficient. Our rear adjustment and quick-hitch system simplifies the process, transforming implement changes from a labor-intensive task into a smooth, controlled operation that improves productivity in the field.

Eliminating Breakage Concerns
Under high-intensity workloads, traditional three-point hitch link rods often face fatigue and fracture risks. OXPLO uses an integrated forging process to significantly enhance impact resistance and structural integrity, ensuring long-term reliability even in tough conditions.

Removing Compatibility Barriers
Equipped as standard with dual 6-spline and 8-spline PTO outputs, OXPLO tractors are designed to match mainstream implements worldwide. No more concerns about interface mismatches — just seamless integration and consistent performance.

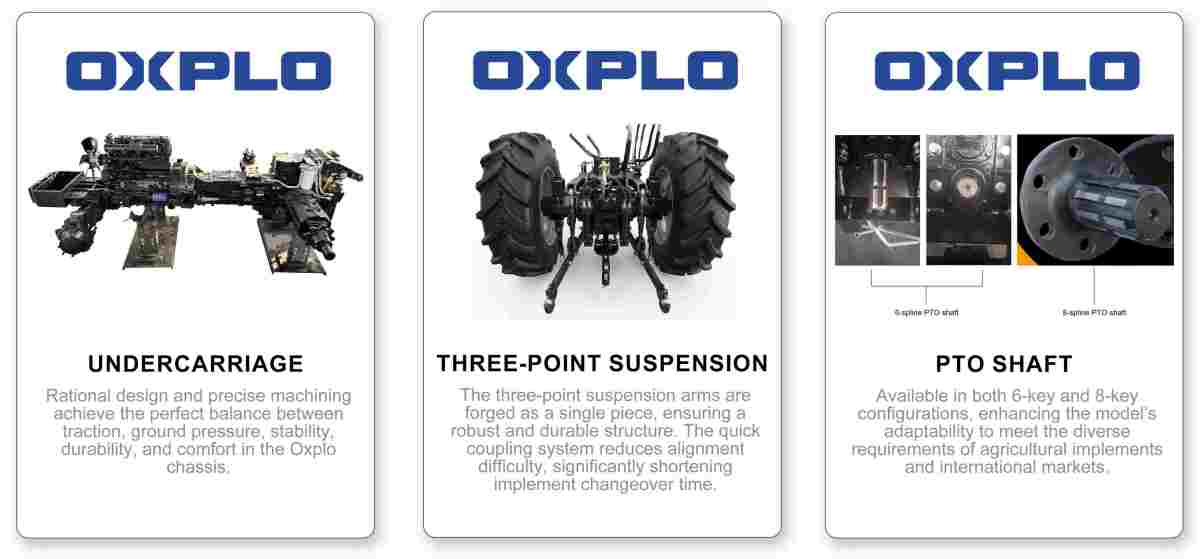

拖拉机部件.1


Trust is built on details you can see — and performance you can depend on. At OXPLO, quality is engineered from the inside out.

Backed by a Global Tier-One Supply Chain
Key internal components are sourced from industry-leading manufacturers, including bearings from C&U and PEER, as well as transmission gears from Wanliyang. Premium components from proven brands ensure extended service life and long-term, trouble-free operation.

World-Class Surface Protection
All models feature high-end coating systems supplied by Jotun. This advanced paint process delivers excellent corrosion resistance along with superior protection against abrasion and flying debris, allowing the tractor to maintain its appearance and structural integrity even after years of operation in harsh environments.

Precision Manufacturing at the Core
Our axle housings and chassis components are not produced through rough casting alone. They are fully machined using high-precision CNC equipment. This process guarantees optimal gear meshing accuracy within the drivetrain, effectively reducing power loss while lowering long-term maintenance requirements.


证书页_03


When you choose OXPLO, you gain more than a tractor — you secure long-term operational value for your business.

Stronger Resale Value
Thanks to the protective coating system from Jotun and the durability of our precision-machined chassis, OXPLO tractors maintain both appearance and mechanical integrity over time. This translates into higher retained value in the secondary market, helping you protect your investment.

Improved Daily Productivity
The quick-hitch system combined with stable, consistent power delivery can help recover approximately 15% of effective working time each day. In agriculture, where timing is critical and seasons wait for no one, that efficiency can make a measurable difference.

Lower Long-Term Operating Costs
Integrated forged hitch rods and a precision-engineered chassis significantly reduce the likelihood of unexpected downtime. With lower component wear and fewer repair interruptions, more of your investment is converted directly into productive output.

Global After-Sales Support
As an internationally focused brand, OXPLO provides a responsive spare parts supply system and professional service support, ensuring your machine remains ready for work whenever you need it.

TRACTOR
TE504

FAQ

Q:Does the Oxplo 50hp tractor meet Australian safety standards (ROPS)?

A:Safety is non-negotiable at Oxplo. All 50hp models exported to Australia are fully compliant with local safety regulations.Whether you choose the open-platform with a foldable ROPS or the fully enclosed AC Cabin, your safety is integrated into the chassis design.


Q:What warranty and after-sales support does OXPLO offer?

A:We stand behind our machines to ensure your farm keeps moving:

Comprehensive Warranty: All OXPLO products are backed by a factory warranty. We provide reliable coverage to ensure your investment is protected.

Extended Protection: For long-term peace of mind, extended warranty options are available to suit your specific operational needs.

Direct Support Channel: We value every user's experience. You can reach our Service Mailbox or hotline directly for technical guidance or to report any challenges.

Proactive Improvement: We listen to your feedback. Your real-world insights help our engineers constantly refine the durability and practicality of our tractors for the Australian market.


Q:Does OXPLO offer customization and specialized attachments?

A:Yes. We provide tailored solutions to make your tractor a versatile powerhouse:

Endless Versatility: Choose from a wide range of high-performance attachments, including:

Front-End Tools: 4-in-1 Buckets (Essential for AU), Standard Buckets, Log Grabs, Pallet Forks, and Stone Collectors.

Livestock & Hay: Bale Spears, Bale Clamps, and Silage Grabs.

Land Management: Slashers (Mowers), Disc Harrows, and Disc Ploughs.

Personalized Aesthetics: Custom colors and branding are available to match your farm’s identity.

Expert Design: Our technical team collaborates with you to ensure every attachment and modification is perfectly integrated for your local requirements.


Q: Is Oxplo a factory or a middleman?

A: Oxplo is a professional tractor manufacturer with our own large-scale production plant. We specialize in R&D and self-production. We do not sell second-hand machines or trade other brands. When you order from us, you are dealing directly with the people who built your tractor, ensuring 100% brand-new quality and professional factory after-sales service.
